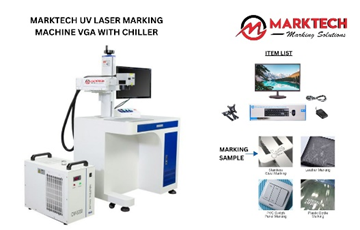

UV LASER MARKING MACHINE
UV Laser Marking Machine is an advanced precision marking system that uses ultraviolet laser technology to create ultra‑fine, permanent marks on a wide range of materials without causing heat damage. It delivers high‑contrast, clean engraving and is ideal for delicate and heat‑sensitive surfaces like plastics, glass, ceramics, and electronics. This non‑contact, cold marking process ensures minimal thermal impact, long‑lasting codes, logos, barcodes, and serial numbers with exceptional clarity. Its versatility and reliability make it widely used across industries including medical, packaging, electronics, and luxury goods.
UV LASER MARKING MACHINE – TECHNICAL SPECIFICATIONS
| Parameter | Specification |
|---|---|
| Model | 30W UV (Ultraviolet) Laser |
| Laser Power | 30W UV (Ultraviolet) Laser |
| Laser Wavelength | 355 nm |
| Marking Area | 100 × 100 mm / 150 × 150 mm / 200 × 200 mm (optional) |
| Marking Speed | ≤ 10,000 mm/s (material dependent) |
| Marking Depth | ≤ 0.03 mm (material dependent) |
| Minimum Line Width | 0.01 mm |
| Minimum Character Size | 0.1 mm |
| Repetition Accuracy | ± 0.002 mm |
| Cooling System | Air cooling / Water cooling |
| Supported File Formats | PLT, DXF, BMP, JPG, PNG, AI, TIFF, SHX, etc. |
| Control Software | EZCAD |
| Laser Source Lifespan | 20,000 – 30,000 hours |
| Input Power Supply | AC 220V ±10%, 50Hz / 60Hz |
| Power Consumption | < 1000 W |
| Operating Temperature | 15°C – 30°C |
| Operating Humidity | 5% – 75% (non-condensing) |
| Machine Dimensions | Approx. 800 × 600 × 1400 mm |
| Net Weight | Approx. 80 – 100 kg |
Portable LCD 30×90 Dot Pin Marking Machine is a high-precision, mobile marking solution designed for permanent dot matrix engravings on metals, plastics, and industrial components. Its portable design allows easy setup and on-site marking, making it ideal for workshops, production lines, and field operations. Equipped with an LCD interface, it offers intuitive programming, real-time preview, and flexible design input. The machine ensures consistent, durable, and accurate markings including logos, serial numbers, barcodes, and QR codes with minimal maintenance. Perfect for electronics, automotive, machinery, and manufacturing industries that require efficient and reliable marking solutions.
