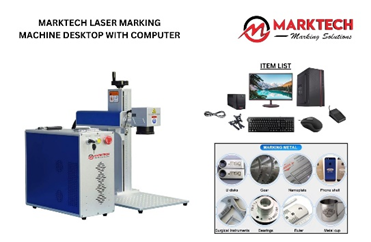

DESKTOP MODEL
The Desktop Fiber Laser Machine is a compact and efficient marking solution designed for precision and convenience. Its space-saving design makes it ideal for small workshops, offices, and industrial setups where limited space is a concern.
Powered by advanced fiber laser technology, it delivers fast, accurate, and permanent marking on a wide range of materials including metals, plastics, and coated surfaces. The machine ensures high-quality engraving with excellent speed and minimal maintenance.
With a user-friendly interface and easy operation, it allows seamless marking of logos, serial numbers, barcodes, and QR codes. The Desktop Fiber Laser is a reliable and cost-effective solution for industries such as electronics, jewelry, automotive, and manufacturing.
TECHNICAL SPECIFICATIONS OF FIBER LASER MARKING MACHINE
| Specification | Details |
|---|---|
| Laser Type | Fiber laser machine |
| Laser Power | 20W / 30W / 50W / 60W / 100W |
| Device Marking Area | 100 × 100, 150 × 150, 175 × 175 |
| Optional Marking Area | 200 × 200, 250 × 250, 270 × 270 |
| Laser Source | Raycus / Maxx |
| Laser Head | SINO GALVO with AUTO FOCUSING LEDS |
| Laser Repetition Frequency | 20 KHZ – 80 KHZ |
| Laser Wavelength | 1064 mm |
| Laser Marking Speed | < 7000 m/s |
| Minimum Line Width | 0.01 mm |
| Minimum Character Size | 0.15 mm |
| Laser Module Life | > 100000 hours |
| Cooling Mode | Inbuilt air cooling |
| Power Input | 220V / 50Hz (single phase) |
| Laser Marking Software | EZCAD Professional / Marktech Marking Software |
| Supported Graphic Formats | JPG, PNG, PLT, DXF |
| System Required | Windows 7 / Windows 10 (64-bit) |
Desktop Fiber Laser Machine is a compact, high-performance marking solution designed for precision and versatility in small spaces. Its portable, space-saving design makes it ideal for workshops, laboratories, and production areas with limited room. Equipped with advanced fiber laser technology, it delivers fast, permanent, and accurate markings on metals, plastics, and coated materials. The machine ensures clean engraving, minimal maintenance, and easy operation for logos, barcodes, serial numbers, and QR codes. Perfect for industries like electronics, jewelry, automotive, and manufacturing, it offers a reliable and cost-effective marking solution.
